Automotive Solutions

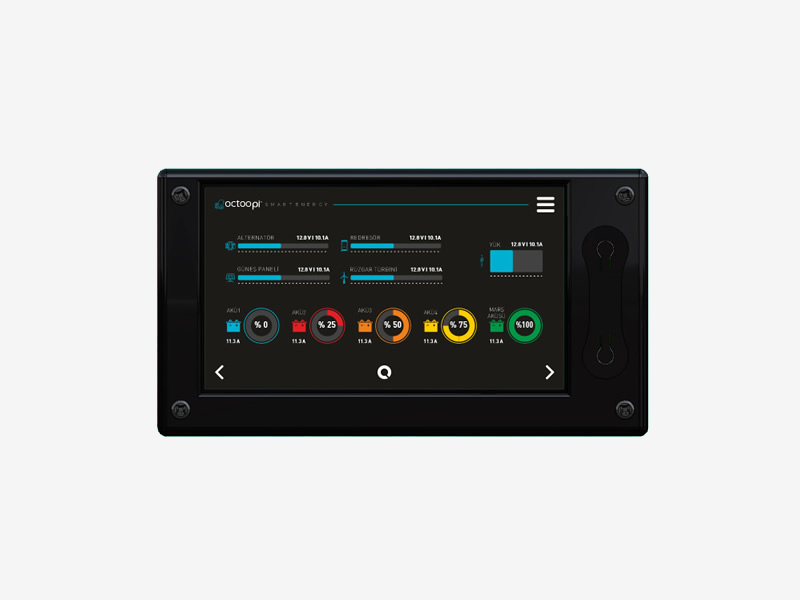

4.3″ CanBUS HMI



Our high resolution touch screen is designed in accordance with automotive conditions. It can be used in automotive, maritime and different sectors. It offers a high-level user experience with its capacitive touch feature.

With our specially developed software, user interfaces (UI / UX) are developed and delivered to you with the features you want. As in the smart phones, we can apply user-friendly and advanced interface designs in the industrial field.



  • Display type: TFT- LCD, LED Backlight
  • Diagonal size: 4.3″
  • Supported resolution: 480 x 3 (RGB) x 272 pixels
  • Touch screen type: Capacitive
  • Response object: Finger touch
  • Interface: CanBUS
  • Active area (W * H): 53.86 × 95.04 mm
  • Brightness: 300 cd / m²
  • Touch interface: USB
  • Input voltage: 12V, 250 mA max
  • Power consumption (max.): 3W
  • Working temperature: -20 °C ~ 60 °C
  • Working humidity: 0% to 80%
  • Certificates: ECE-R10
  • Type Approval : Yes
